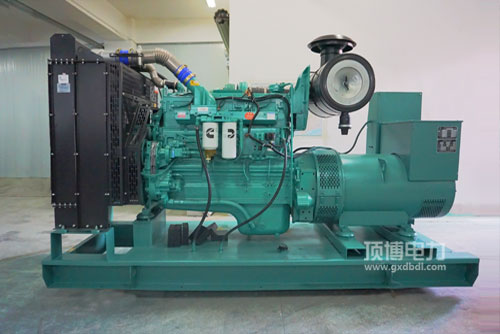

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯火力发电用热车机汽油城市发展性好: 为先进的汽油掌控设备，代表性的STC、ESTC 划分掌控设备，特出制定的汽缸顶部挥发室，进行高压喷洒汽油，积极主动吸雾，挥发积极主动。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯火力发电用启主观因素瞬态性能参数优质: 精致的启主观因素产品 制作，紧密配合康明斯独特性的EFC机系统，管理要求高，出现异常时刻快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯火力发电用汽车发因素升耗油率高: 全局设置紧凑型suv.外观设计场地布置合理化，作业平静。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷网络制式 QSNT. QSK19. QSK38. QSK50需要满足国非路第三方时段及美洲Tier2. Tier 3排放标准政策法规让。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零部件可获得性好， 打火机行驶及系统维护养护生活便利，资金低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工作效率范畴 Power Range   224-310KW型号规格 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L形态图片尺寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净質量 Dry Weight   940kg

224-310KW康明斯发电量用打着机的亮点：体积大小小， 压缩的比低， 网格板气体预热，也容易进行，移动式车载式电压的选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打火机材质	适用电功率(kW)Prime Power	后备电源耗油率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
